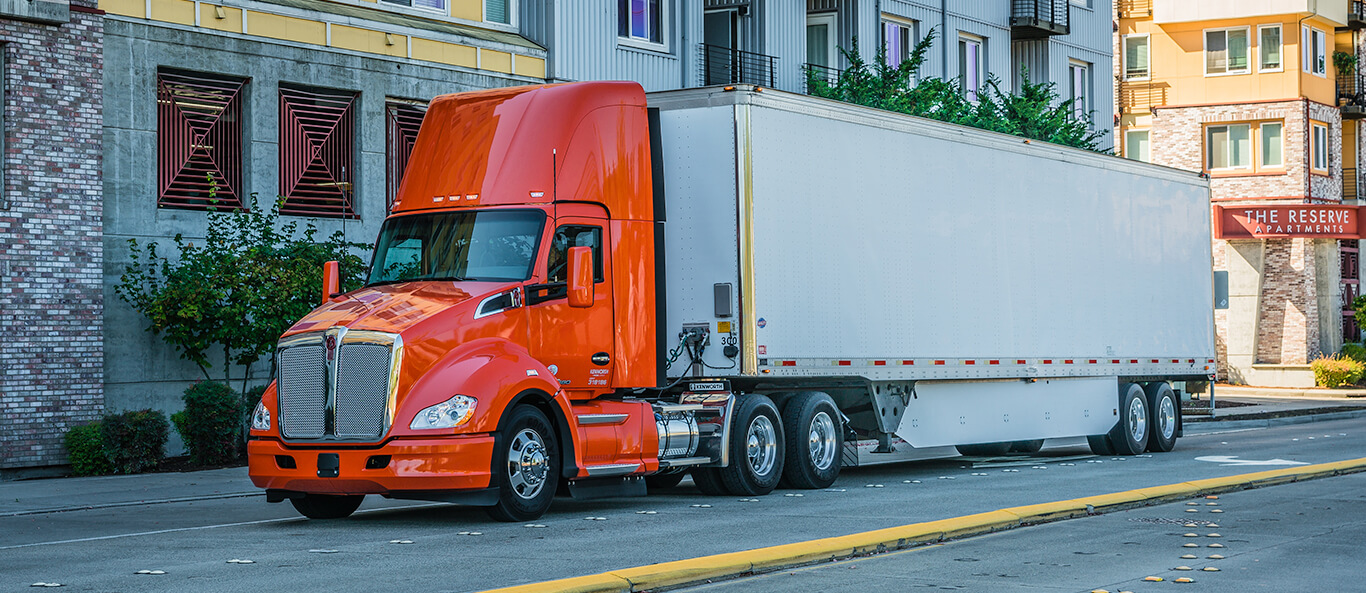

Perfected for the road ahead

Start with the most highly evolved aerodynamic long-haul tractor Kenworth has ever engineered. Optimize the powertrain with an efficient, fully-integrated solution from PACCAR. Incorporate easier-to-service, longer-lived components for maximum uptime. Add smart technology that makes driving more intuitive, safer, less fatiguing. And include a world-class cabin reminiscent of the finest automobiles. Welcome to the Kenworth T680.



PROFIT-TUNED PERFORMANCE

The sleek new exterior of the T680 incorporates innovative aerodynamic design features meant to squeeze every possible mile from every gallon. Offering you up to 7 percent in fuel savings* from day one.

*Based on similarly spec’d T680 classic model. Fuel savings dependent on spec and application.


CUTTING EDGE EXTERIOR STYLING

Wind-cheating features begin up-front with a narrower hood and grille design that cuts neatly through the air. A-pillar turning vanes create less wake next to side windows and smooths airflow around the cab. Integrated front air dams, redesigned chassis fairings, and optional 28-inch side extenders work in tandem to keep airflow tight to the truck. Tandem axle fairings combine with new wind-slick wheel covers to reduce turbulence around the rear wheels and on to the trailer.

FUEL-SAVING INTELLIGENCE

A state-of-the-art, fully-optimized PACCAR powertrain together with innovative technologies such as Predictive Cruise Control, Predictive Neutral Coast and driver shift aids deliver unrivalled fuel-saving performance – automatically.

NEXT GEN EXTERIOR LIGHTING

Headlamp choices:
  • New best-in-class LED headlamps boost lighting efficiency, offering a wider pattern and whiter lighting for better visibility. Signature LED daytime running lights add a signature Kenworth look.
  • Halogen headlamps flow with the hood and integrate daytime running lights and an amber turn signal.

New side turn indicators: An unmistakable 17.3”-long LED side turn indicator, mounted to the trailing edge of the hood, increases visibility for surrounding traffic.

DOT 1 DOT 2 DOT 3

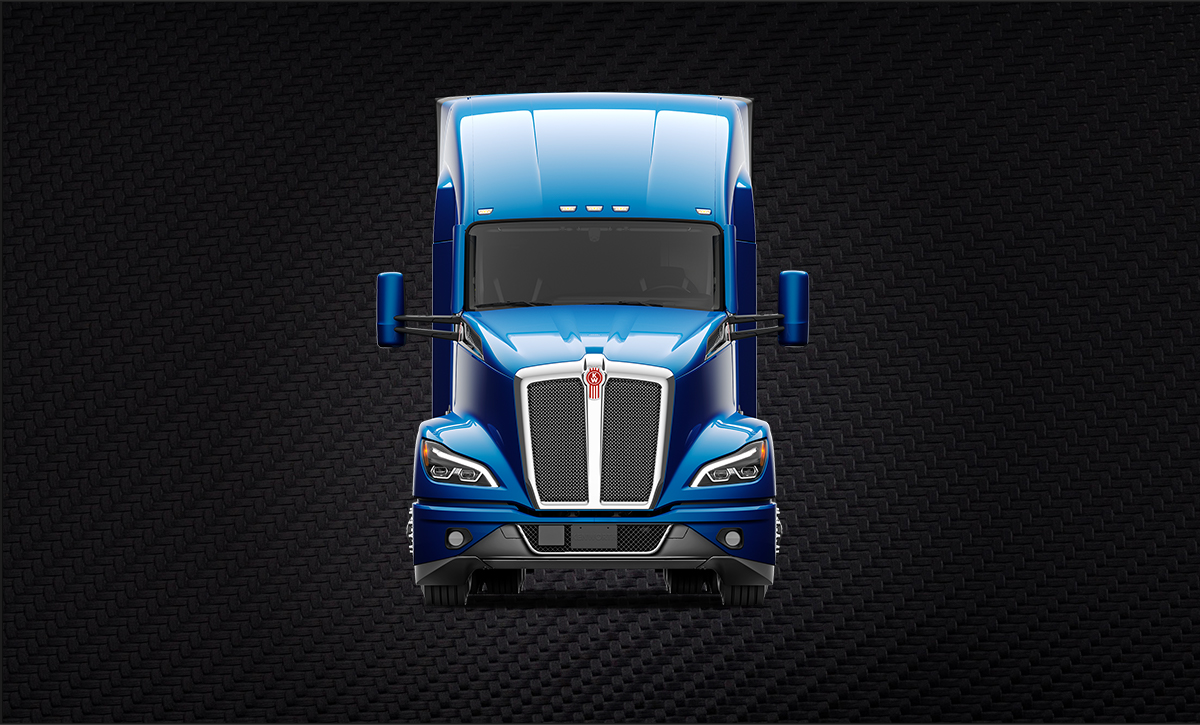

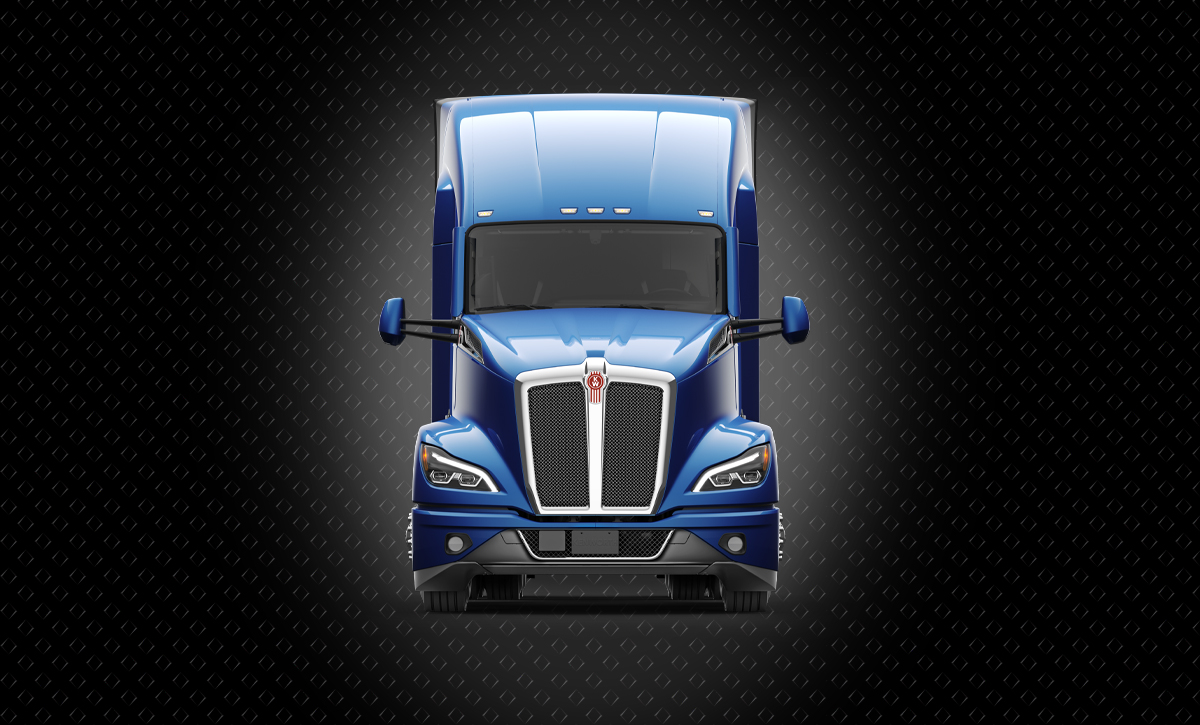

T680 Next Generation isolated with carbon fiber background

SPECIFICATION

Standard
Optional

Engine / Powertrain

  • EPA 2021 PACCAR MX-13 Engine
    • 12.9 Liter
    • 405-510 HP
    • 1,550 - 1,850 lb-ft of Torque
  • TruckTech+ Remote Diagnostics
  • TruckTech+ Over-The-Air Update Capable

Exhaust / Aftertreatment

  • RH Under Fairing DPF/SCR with Horizontal Tailpipe
  • DEF Tank – 21 Usable Gallons

Transmission

  • PACCAR TX-12 Automated Transmission

Rear Axle

  • PACCAR DX-40 Tandem Axle

*Please contact your local dealer for more spec information.

Engine / Powertrain

  • PACCAR MX-11 Engine
    • 10.8 Liter
    • 355-455 HP
    • 1,250 - 1,700 lb-ft of Torque
  • TruckTech+ Remote Diagnostics

Exhaust / Aftertreatment

  • RH Under Fairing DPF/SCR with Horizontal Tailpipe
  • Small Round DEF Tank – 11 Usable Gallons

*Please contact your local dealer for more spec information.

T680 Product Development

Kenworth started the journey by integrating engineering teams, aerodynamic experts and the styling department to push the boundaries of truck design and continued the development by involving over 100 truck drivers to produce the T680.

Driver-optimized Technology

The T680 employs a suite of intelligent technologies designed to elevate the driving experience like never before – offering safer, more intuitive control and a full range of productivity features.

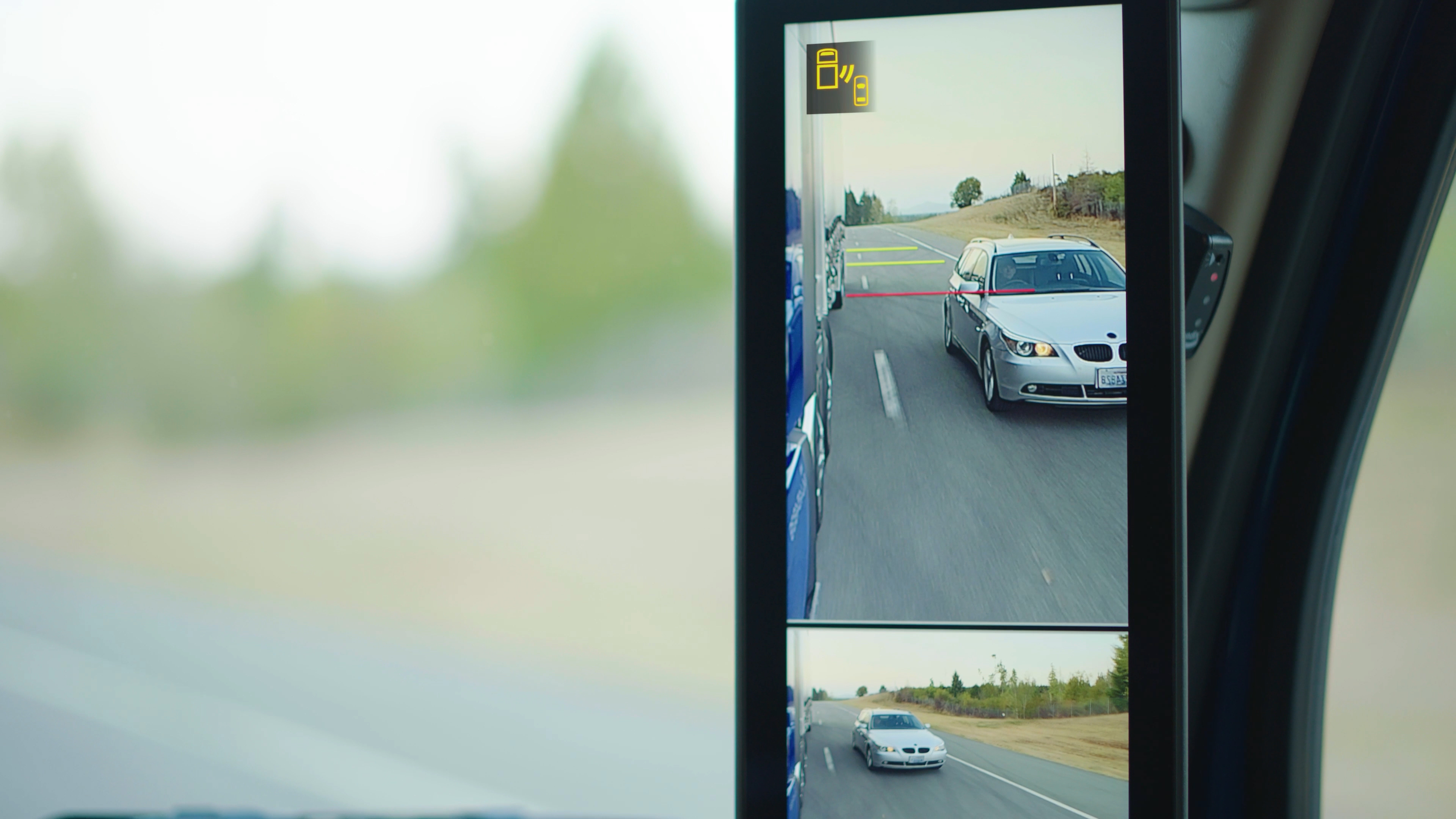

Digital Mirrors

DIGITAL MIRRORS

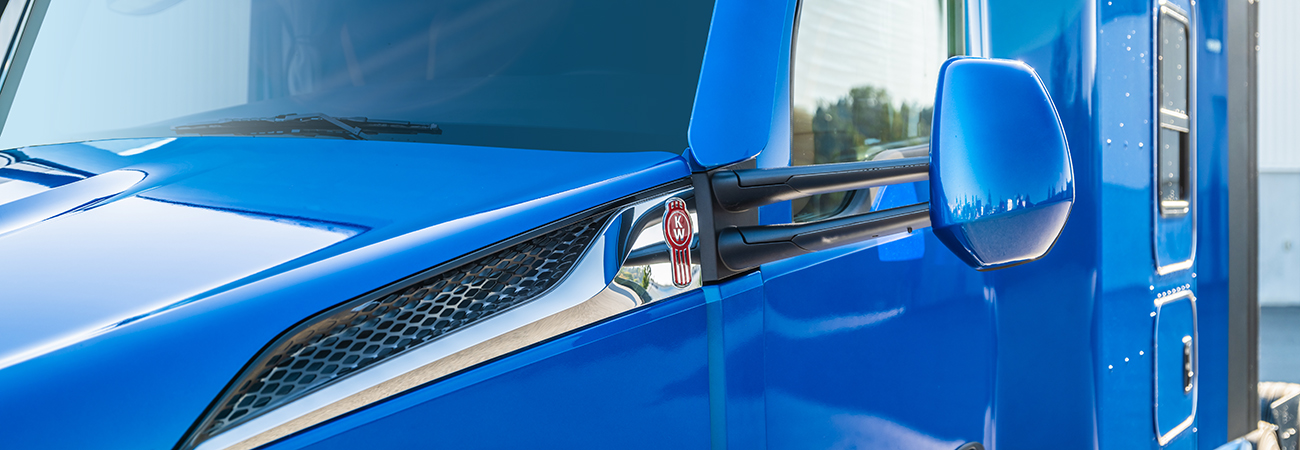

The new Kenworth Digital Mirror System improves T680 fuel economy by up to 1.5% and enhances driver visibility by providing a clearer and wider view around the truck – during the day, at night, and in inclement weather. The large high-def interior displays put the mirror view image in an easier-to-see position keeping the driver's eyes closer to the road. Technology innovations allow you to track your trailer around a corner or while backing – through any driving environment.

Mirror Features

• Up to 1.5% fuel economy benefit with smaller mirror design • Auto camera defrost under 43°F • Painted or chrome mirror shells

Mirror Cameras

• Driver Side - Rear view camera • Passenger Side - Separate rear view & lookdown cameras • Infrared sensors to support night vision • Hydrophobic camera lenses repel water, ice and dust ensuring clear view

In-Cab Displays

• High definition displays, 12.3" Driver Side, 15" Passenger Side • Blind spot reduction • Auto adjusting brightness • A-pillar mounting position keeps the driver's eyes closer to the road

Vision Enhancements

• Automatic active trailer tracking with end-of-trailer markers • Infrared night vision • Clear inclement weather vision using hydrophobic camera lenses

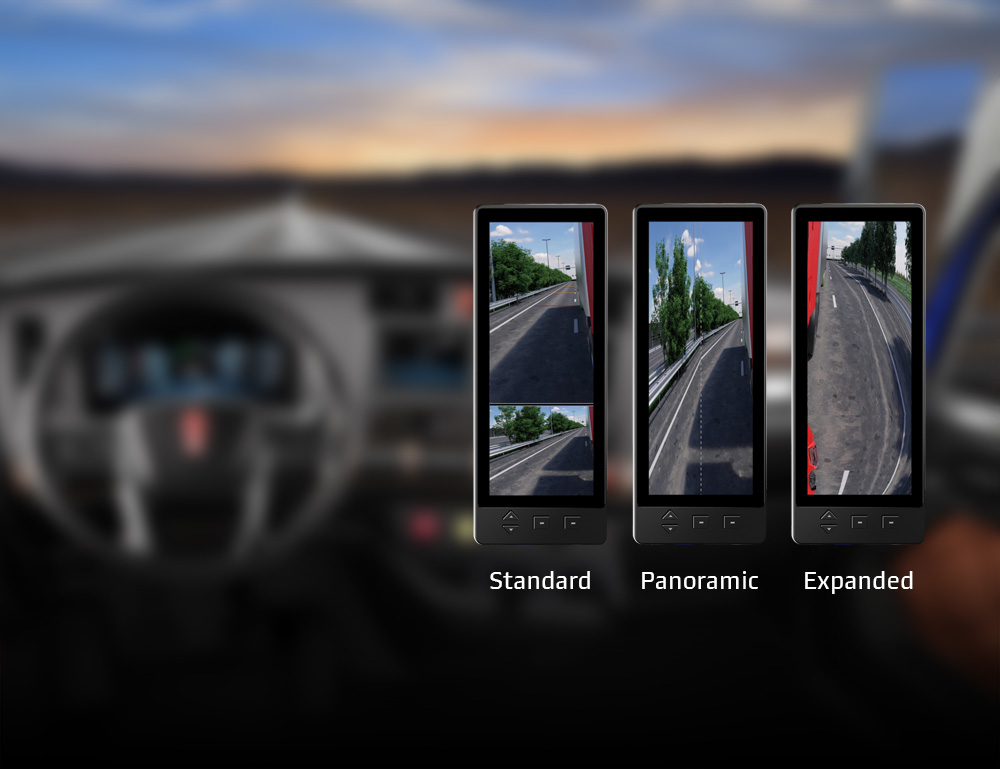

Display View Options

• Traditional view with rear and convex view • Panoramic view combines rear + convex at full screen size • Expanded view combines panoramic + look-down view (passenger side)

Door Controls & Display Selector

• Quickly toggle between physical and camera mirror control • Same joystick control for view adjustment • On-monitor menu buttons allow for menu selection and display adjustment

15 inch digital display

15-inch DIGITAL DISPLAY

An industry-first at this size, the new 15-inch high-definition, fully digital instrumentation, contains all the information a driver needs to operate the truck – configurable for as much or as little content as they want.



NEXT GEN SMARTWHEEL

Places the most important vehicle controls – including Digital Display features – instantly at hand with tactile, eyes-on-the-road function choices.


Set Trip Segment

  • Starts a new segment
  • Can save up to 26 separate trip segments

Phone & Radio Source

  • Answer and end phone calls
  • Change radio source
  • Adjust volume

Shortcut

Customizable shortcut button
  • Favorites screen
  • Digital RPM
  • Dual speedo (MPH/KPH)

Instrumentation Scroll & Select

  • Intuitive navigation of the 15" Digital Display
  • Customizes display layout by moving and placing gauges

Cruise Control

  • Places Cruise Control at the driver's fingertips
  • Cruise Control improves overall fuel economy

Headway Adjustment

  • Adjust adaptive cruise control following distances
  • Sets Predictive Cruise Control droop and overshoot

Variable Road Speed Limiter

  • Sets the pedal speed
  • Ideal for construction zones and other speed restricted driving conditions
  • Exclusive PACCAR MX-13 and MX-11 feature
DOT 1 DOT 5 DOT 6 DOT 7 DOT 2 DOT 3 DOT 4

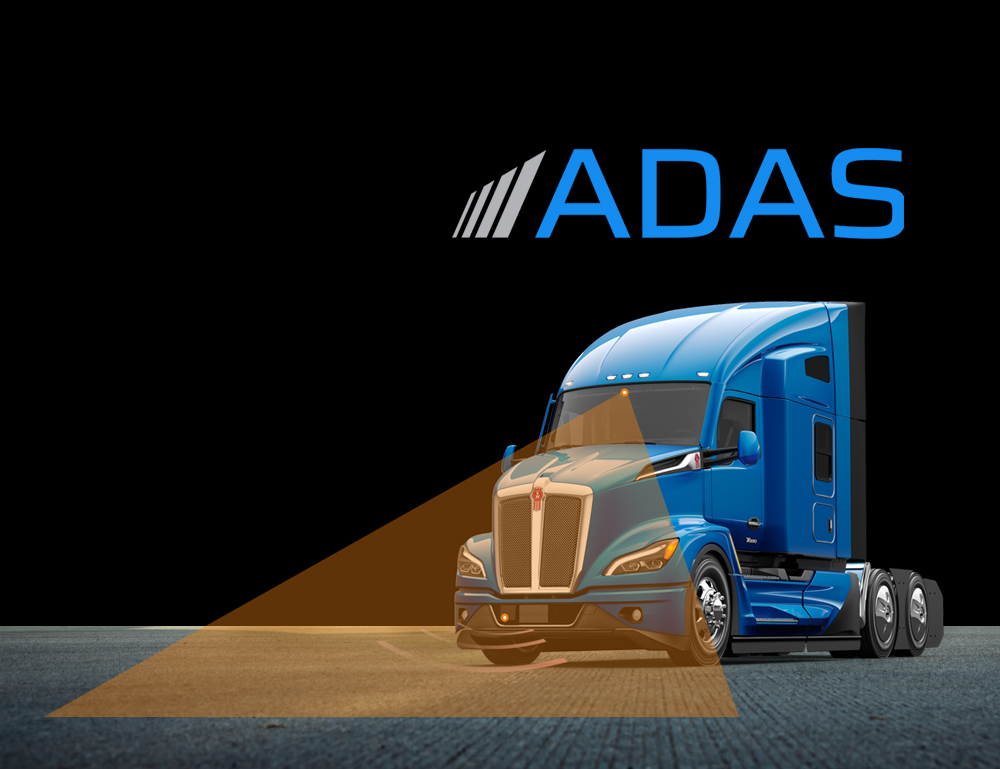

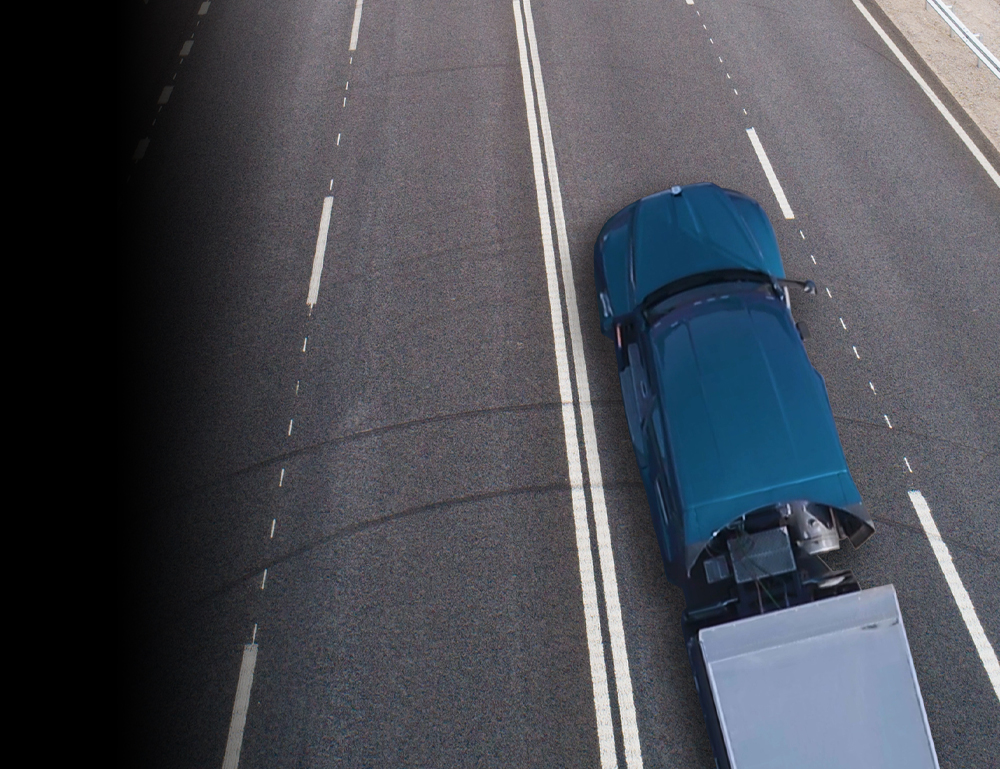

ADAPTIVE CRUISE CONTROL

Reads traffic conditions via front-facing radar sensor and modulates the throttle and the brakes to keep your truck at a pre-set distance from the vehicle in front of it.

COLLISION MITIGATION

Detects when the truck may be about to collide with another vehicle or object, alerts the driver and takes pre-emptive braking action — when necessary — to avoid or considerably reduce the severity of a crash.

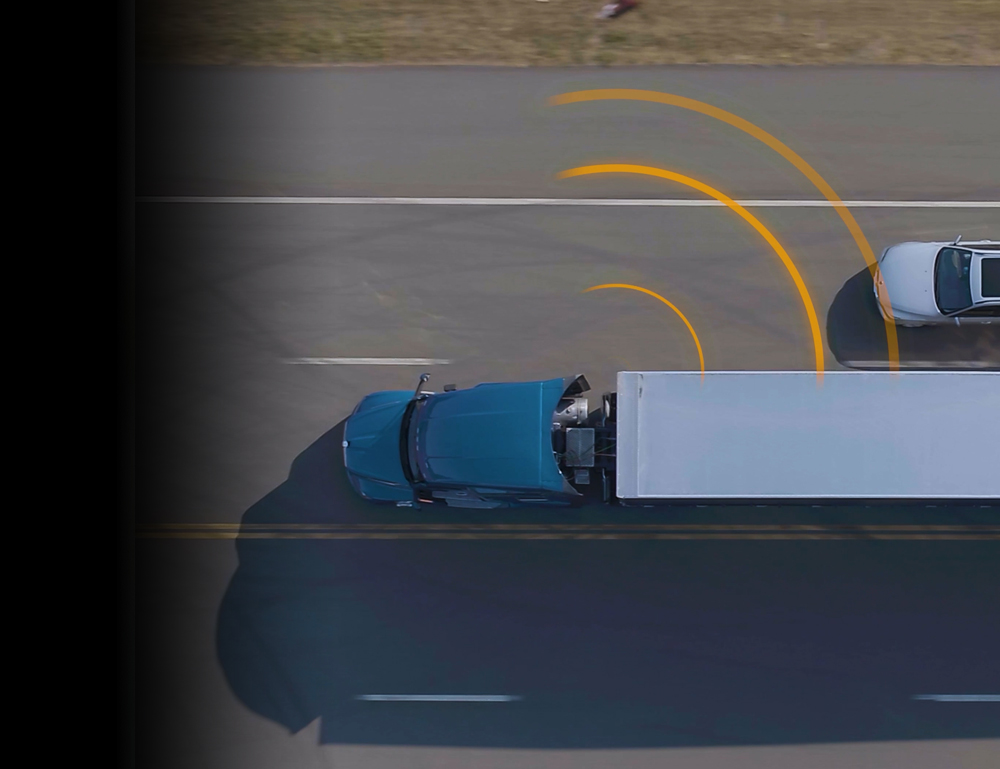

Diagram of side object detection and collision mitigation

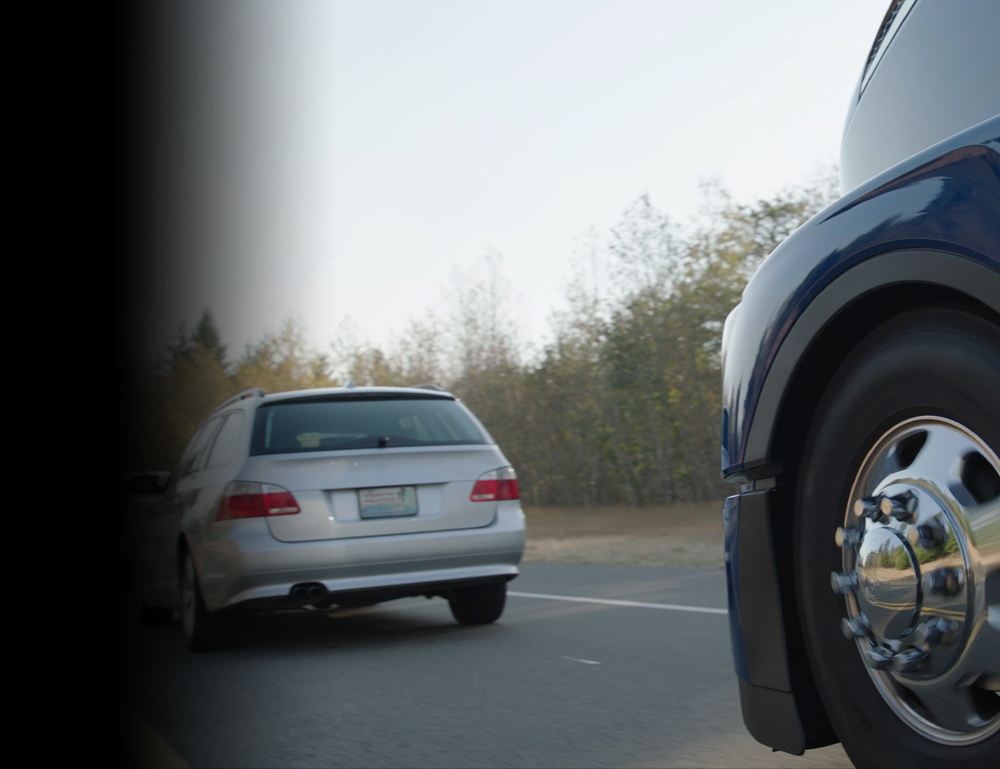

SIDE OBJECT DETECTION

Constantly monitors a truck’s blind spots and provides the driver with audible and visual alerts when an object or vehicle has entered these zones — invaluable when making a lane change or negotiating tight delivery sites.

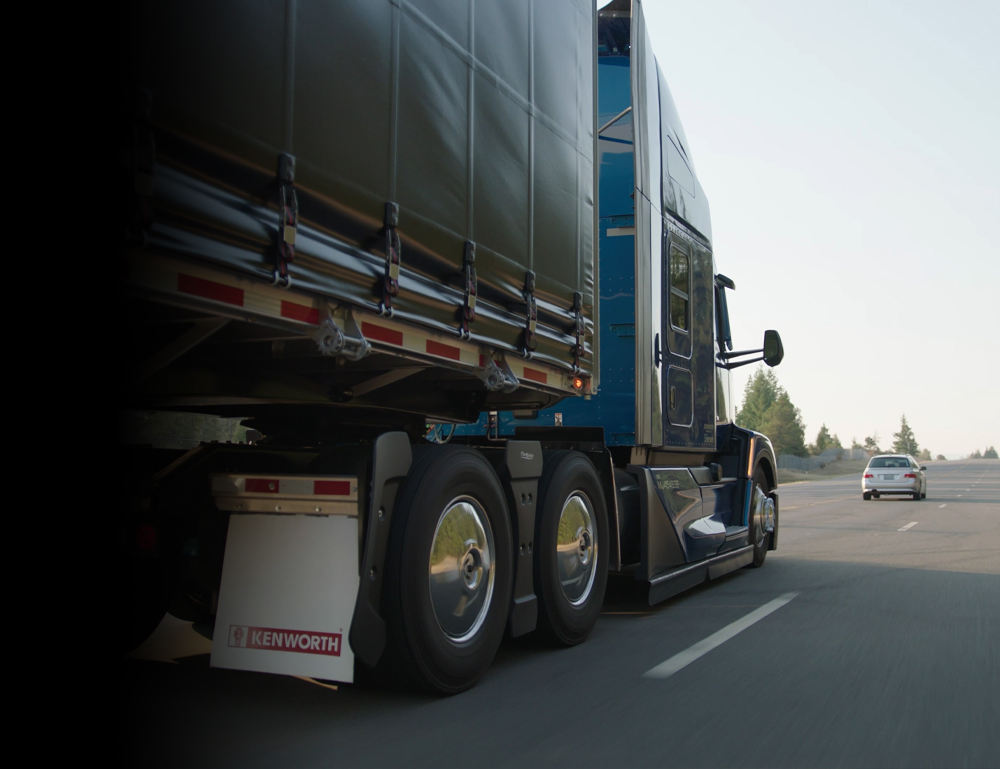

LANE DEPARTURE WARNING

This system continually monitors the truck’s location related to lane markings and automatically emits a distinctive audible warning whenever an unintended lane change (unsignaled) is detected — alerting the driver to make a correction.

LANE KEEPING ASSIST

This system uses the Bendix Fusion camera to monitor the truck’s location related to the lane markings and provides a nudge to correct the direction of the truck. This includes Torque Assisted Steering and is active above 37 mph. It includes hands on detection to ensure the driver is paying attention.

Torque Assisted Steering

Torque Assisted Steering is an adaptive steering technology featuring an electric motor control system that works with the hydraulic gear to improve the driving experience. It adjusts torque based on vehicle speed, easing effort at low speeds while firming at higher speeds to provide a consistent feel.

It can be tailored to the driver’s preference with three levels of assistance controlled by a conveniently positioned dash switch. This allows the driver to dial in the system so that it works for them.

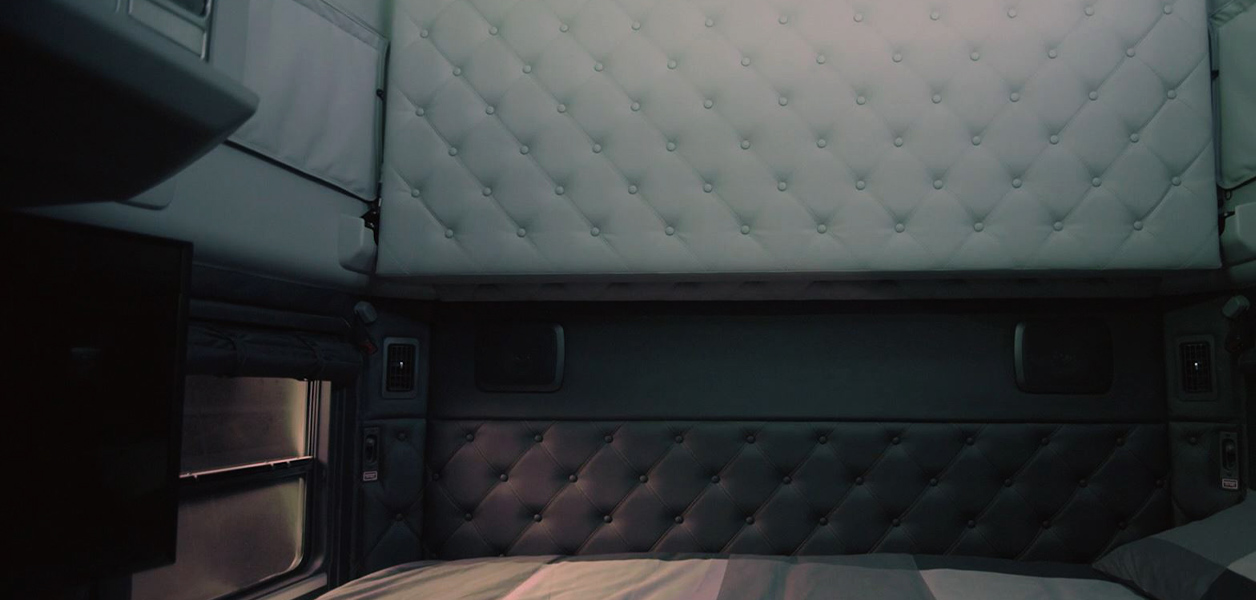

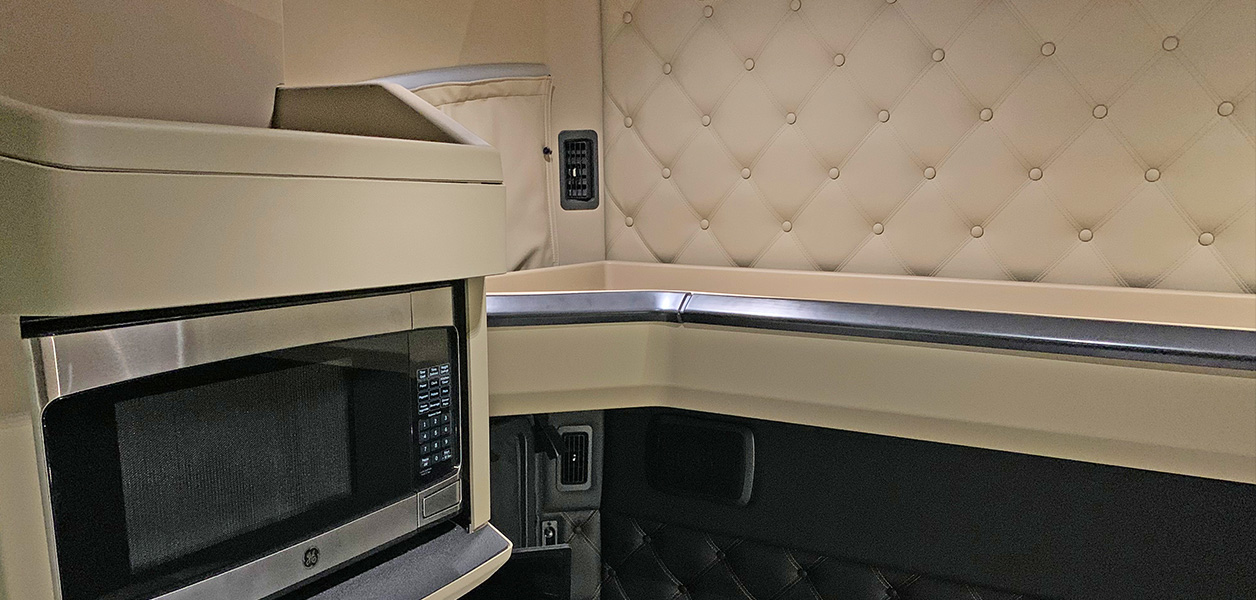

World-Class Accommodations

One look and you know: A Kenworth T680 is The Driver’s Truck™. Bold, sweeping lines wrap a world-class cabin equal only to fine automobiles. Groundbreaking technology and true ergonomic comfort elevate the driving experience while reducing fatigue. Space, elegant design, fine craftsmanship and an abundance of luxury details define the environment. And when it’s time to relax, this is the ultimate home away from home.

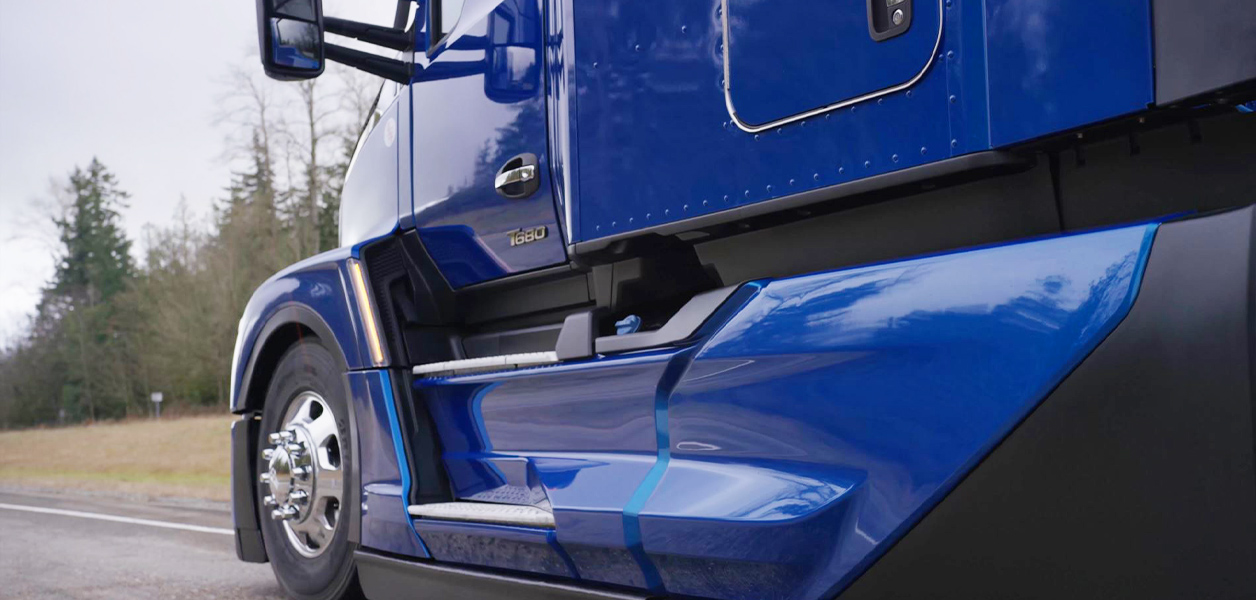

POWER MANAGEMENT SYSTEMS

All the great power management technologies integrated into the T680 Classic have been carried over into the new T680. Save fuel and stay comfortable while out of the road with our full suite of options.

Learn More About Power Management

PACCAR POWERTRAIN

Innovative technologies and advanced manufacturing processes deliver fuel efficient, light weight designs resulting in a lower cost of ownership.

More About Paccar powertrain

T680 Classic

Aggressive aerodynamic design. A fully integrated, highly efficient PACCAR Powertrain. Uptime engineering that results in an unmatched work ethic.
